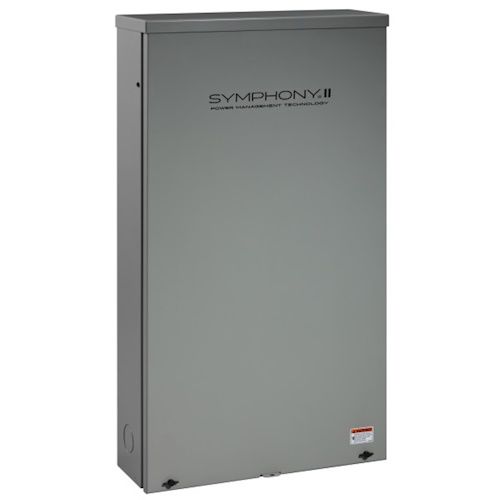

Briggs & Stratton 400-Amp Split Service Automatic Transfer Switch + AC Shedding (Service Disconnect)

Key Specifications:

• Type: Service Disconnect
• Amp Rating: 400 Amps
• Load Management: Built-In
• Voltage: 120/240 Single-Phase
• Enclosure: NEMA 3R (suitable for indoor or outdoor placement)
• Compatibility: Only compatible with 20-45kW Briggs & Stratton generators

Features:

• 400-Amp Service Entrance Auto Transfer Switch:
  • UL Listed solution for 2 x 200-Amp service breakers
  • First in its class, eliminating the need for two separate auto transfer switches
  • Service entrance rated, allowing all circuits to be powered without a sub-panel
  • Rated at 400-Amps at 240V (2 x 200A)
• Faster Installation:
  • Pre-wired generator power distribution inside the switch
  • Requires less wiring and less time than typical two-switch installations
• Smaller Transfer Switch Footprint:
  • Eliminates the space needed for two separate switches
  • Results in a smaller, cleaner-looking installation
• Symphony™ II Whole House Power Management:
  • Manages the demands of up to 8 high wattage loads (e.g., AC, hot water)
  • Powers the entire home (load dependent) while preventing overload
• Versatile Design:
  • NEMA 3R cabinet allows for outdoor or indoor placement

Additional Information:

• Note: Reference local building codes to determine if an ATS with separate service entrance disconnects is required.

Optimize Your Home's Power Management with Briggs & Stratton

The Briggs & Stratton 400-Amp Split Service Automatic Transfer Switch + AC Shedding (Service Disconnect) is a cutting-edge solution designed for optimal power management and ease of installation. Its innovative design eliminates the need for two separate auto transfer switches, making it the first of its kind in the market. With a built-in service disconnect and load management system, this switch ensures that your home remains powered without the hassle of additional sub-panels or complex wiring.

The UL Listed switch, compatible with 20-45kW Briggs & Stratton generators, simplifies the installation process with its pre-wired generator power distribution, reducing the need for extensive wiring and saving you time. The compact design also means a smaller footprint, giving your installation a cleaner and more organized appearance.

The Symphony™ II Whole House Power Management system is a standout feature, capable of managing up to 8 high wattage loads such as air conditioning and hot water systems. This ensures that your entire home remains powered without the risk of overload, providing peace of mind during power outages.

Versatile and robust, the NEMA 3R enclosure allows for both indoor and outdoor placement, making it adaptable to various installation environments. However, it's crucial to reference local building codes to determine if an ATS with separate service entrance disconnects is required for your specific setup.

Choose the Briggs & Stratton 400-Amp Split Service Automatic Transfer Switch + AC Shedding for a reliable, efficient, and streamlined power management solution. Ensure your home is prepared for any power outage with this top-of-the-line transfer switch.
